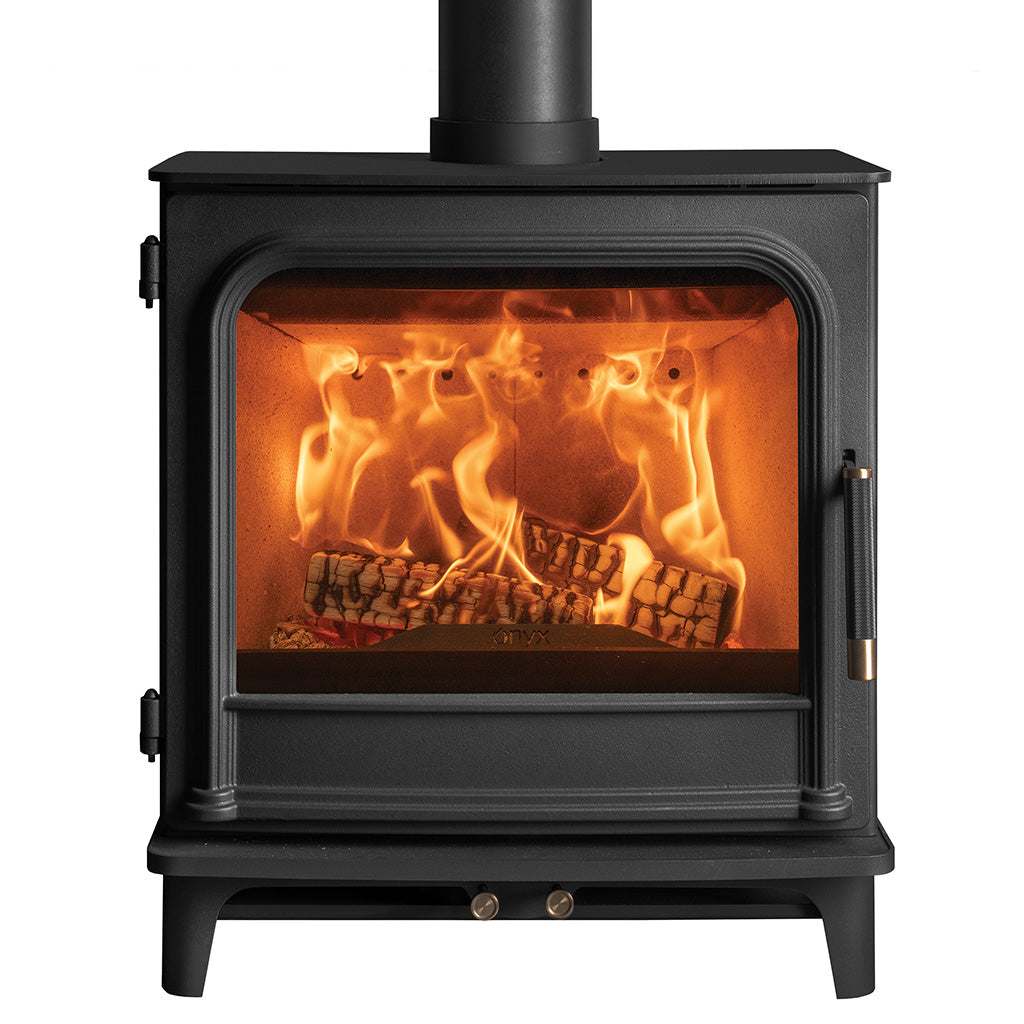

Onyx Athos 5 Wide Wood Burning / Multi-Fuel Stove

Onyx Athos 5 Wide Wood Burning / Multi-Fuel Stove

£1,995.00

The Onyx Athos 5 Wide gives the classic Athos design a broader firebox and the flexibility of multi-fuel burning. It suits a wider fireplace or a larger room, with the same traditional styling and heritage detailing as the standard Athos.

Its fixed multi-fuel grate burns logs or approved smokeless fuels, so you can choose whichever suits your home and supply. A steel body, a cast iron door that swings fully open to 180°, and Cleanburn and Airwash systems combine robust build with clean, efficient burning. It is Ecodesign compliant, A rated and approved for Smoke Control Areas without an extra kit. Contact us to find out more.

As part of the Stovax Heating Group, Onyx brings over 40 years of British design and engineering expertise to its stoves and fires, each created in the group’s research and development laboratories.

Athos and Olympus stoves can take their combustion air from the room or, with the optional outdoor air kit, directly from outside the home.

Standard (room air) – The stove draws air from the room it heats. Your installer will advise whether a fixed air vent is needed under Building Regulations.

Outdoor Air Kit – Ducts air to the stove from outside, which suits well-insulated, airtight homes and helps avoid drawing warm air out of the room.

Accessories:

Variant

Request an Installation Quote

After-Sales Support

5 Year Extended Warranty

Explore More Fires:

Contemporary Wood Burners Onyx Wood Burners Traditional Wood Burners Wood Burning Stoves

Onyx Athos 5 Wide Wood Burning / Multi-Fuel Stove

£1,995.00

At 575mm wide, 641mm high and 370mm deep, the Athos 5 Wide is the larger of the two Athos models. It is compatible with a 12mm hearth and has a 128mm (5") top or rear flue outlet. An optional outdoor air kit can bring in combustion air from outside the home. A site survey by a qualified solid fuel installer is recommended, and a carbon monoxide alarm must be fitted.

The wider door gives a broad view of the flames through clear glass, kept clean by the Airwash system. Traditional curves are finished with an anodised handle featuring a black knurled grip and champagne accents.

The nominal heat output is 5kW, with a range of 2.5kW to 7kW, at 79.5% efficiency. A convector heat system moves warm air out into the room, and the burn is set by hand using the stove’s air controls, with no power supply needed.

Details

Options

Fuel Type: Multi-fuel – wood or approved smokeless fuel (fixed grate)

Flue Outlet: Top or Rear, 128mm (5")

Outdoor Air Kit: Optional

Smoke Control Areas: Approved as standard – no kit required

Hearth: 12mm hearth compatible

Technical Specs.

Unit width	575mm
Unit height	641mm
Unit Depth	370mm
Energy Rating	A
Efficiency	79.5%
Heat output	5kW
Fuel Type	Multi-fuel
Flue Outlet Diameter	128mm

Delivery / Returns

Lead time 3-4 weeks

Upon the receipt of your goods, you have 48 hours in which to declare any damages. Any damages reported outside of this window are subject to possible rejection, resulting in the denial of a replacement or refund.

For full delivery and returns conditions please visit Delivery & Returns

Enduring style

Athos and Olympus stoves bring the timeless allure of real fire with the very latest in design and precision engineering.

New heights of design

Every Onyx stove is built with our environment in mind. Our advanced Ecodesign technology ensures exceptional heating efficiency while minimising smoke and emissions, and generating the maximum amount of heat from your fuel. Additionally, both Athos and Olympus stoves are suitable for Smoke Control Areas.
