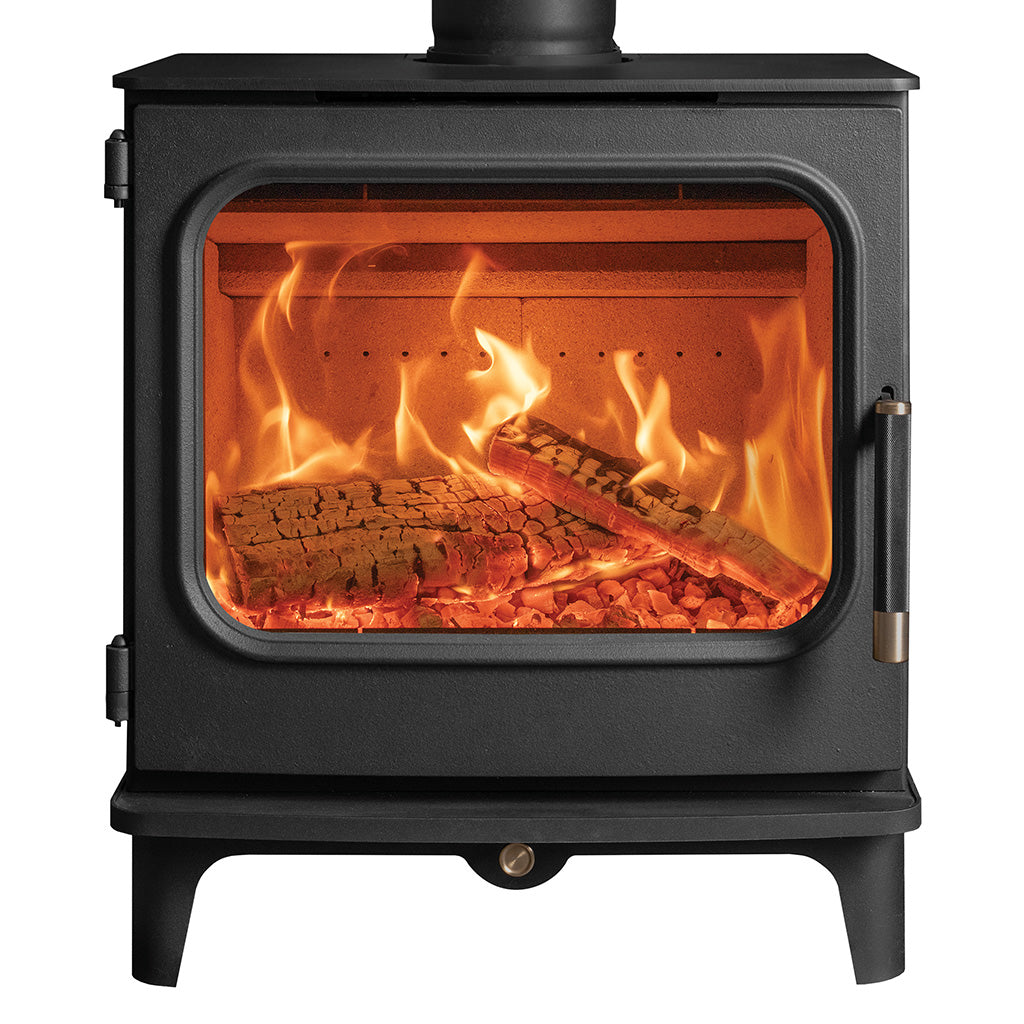

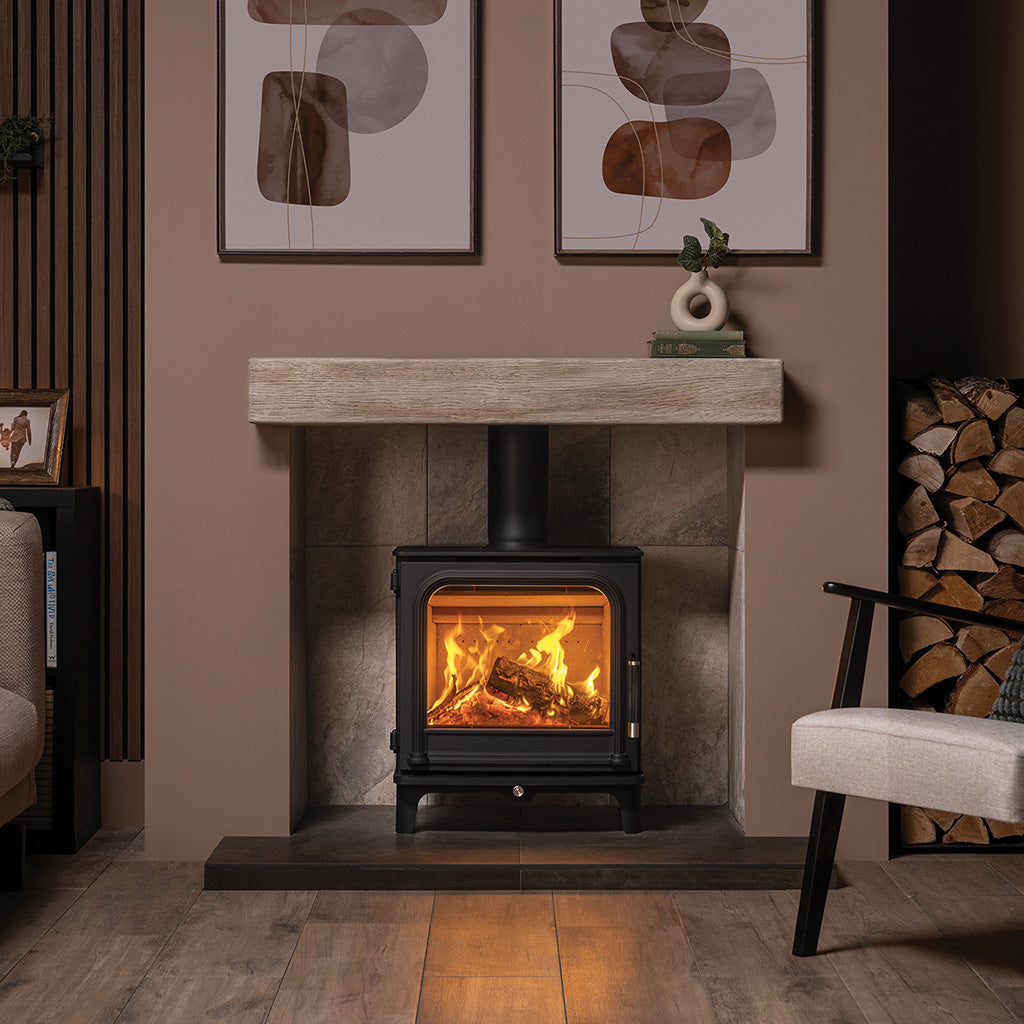

Onyx Athos 5 Wood Burning Stove

£1,695.00

The Onyx Athos 5 brings the character of a classic stove into the modern home. Its graceful proportions and heritage-inspired details suit period properties and traditional interiors, while the engineering inside is entirely up to date.

The Athos 5 is a dedicated woodburner, built to get the most from seasoned logs. It has a durable steel body and a cast iron door that opens to 180° for easy loading and cleaning. Cleanburn and Airwash technology keep the glass clear and the burn efficient. It is Ecodesign compliant, rated A+ and approved for use in Smoke Control Areas as standard. Contact us to find out more.

Onyx is part of the Stovax Heating Group and draws on more than 40 years of British design and engineering. Every Onyx stove is developed in the group’s own research and development laboratories.

Athos and Olympus stoves can take their combustion air from the room or, with the optional outdoor air kit, directly from outside the home.

Standard (room air) – The stove draws air from the room it heats. Your installer will advise whether a fixed air vent is needed under Building Regulations.

Outdoor Air Kit – Ducts air to the stove from outside, which suits well-insulated, airtight homes and helps avoid drawing warm air out of the room.

Accessories:

Variant

Request an Installation Quote

After-Sales Support

5 Year Extended Warranty

Explore More Fires:

Contemporary Wood Burners Onyx Wood Burners Traditional Wood Burners Wood Burning Stoves

Onyx Athos 5 Wood Burning Stove

£1,695.00

The Athos 5 measures 512mm wide, 585mm high and 329mm deep. It can stand on a 12mm hearth and has a 128mm (5") flue outlet that exits from the top or rear. An optional outdoor air kit lets the stove draw combustion air directly from outside. A site survey is recommended before purchase, and the stove must be installed by a qualified solid fuel installer. A carbon monoxide alarm is a legal requirement.

The design follows traditional stove lines, with an arched door and an anodised handle with a black knurled grip and champagne end caps. The clear glass gives a full view of the fire, and the Airwash system sends a curtain of air over it to help keep it clean.

The Athos 5 has a nominal heat output of 4.8kW, adjustable from 2kW to 6kW, at 82% efficiency. Its convector heat system circulates warm air around the room as well as radiating heat from the body. It needs no electricity and no remote; air controls on the stove set the burn rate.

Details

Options

Fuel Type: Wood only (dedicated woodburner)

Flue Outlet: Top or Rear, 128mm (5")

Outdoor Air Kit: Optional

Smoke Control Areas: Approved as standard – no kit required

Hearth: 12mm hearth compatible

Technical Specs.

Unit width	512mm
Unit height	585mm
Unit Depth	329mm
Energy Rating	A+
Efficiency	82%
Heat output	4.8kW
Fuel Type	Wood
Flue Outlet Diameter	128mm

Delivery / Returns

Lead time 3-4 weeks

Upon the receipt of your goods, you have 48 hours in which to declare any damages. Any damages reported outside of this window are subject to possible rejection, resulting in the denial of a replacement or refund.

For full delivery and returns conditions please visit Delivery & Returns

Enduring style

Athos and Olympus stoves bring the timeless allure of real fire with the very latest in design and precision engineering.

New heights of design

Every Onyx stove is built with our environment in mind. Our advanced Ecodesign technology ensures exceptional heating efficiency while minimising smoke and emissions, and generating the maximum amount of heat from your fuel. Additionally, both Athos and Olympus stoves are suitable for Smoke Control Areas.
